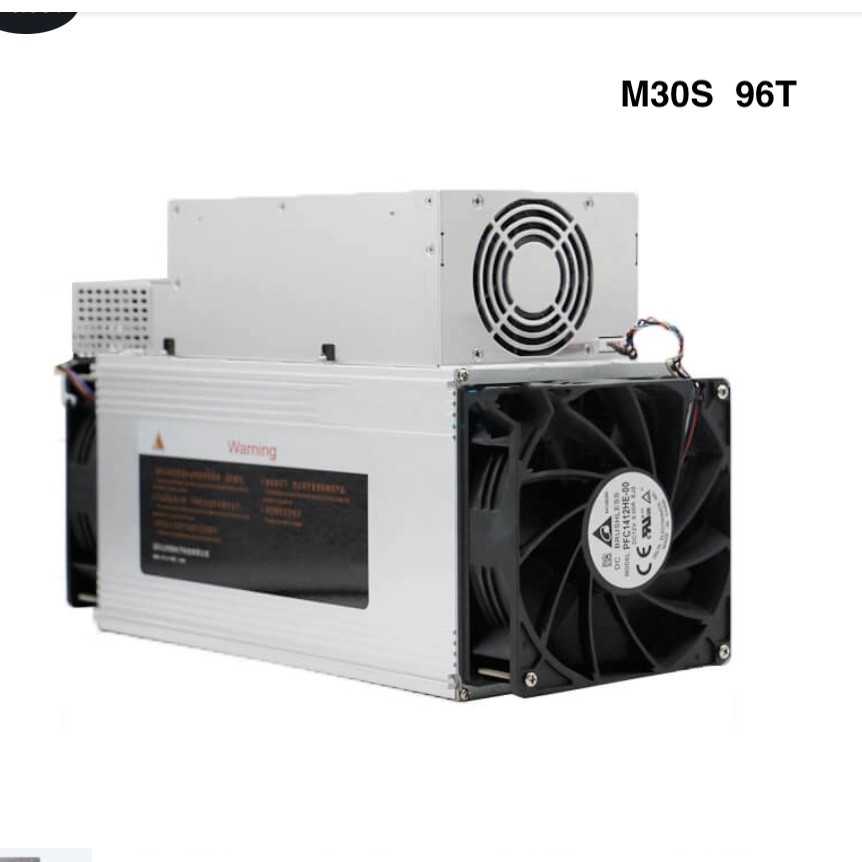

Of appearance, the size is 150 x 255 x 390mm, and the weight is 10.5kg. The difference between the M30S and M20S is that the power supply is replaced with a flat style, which reduces the machine's height by 15mm, and at 0.9kg, the weight of the whole machine is lighter than the M20S-68T. The device uses one input, one output system with two dedicated fans for cooling. The air inlet fan comes with a protective metal cover.

The WhatsMiner M30S uses a standard power supply model: P21-GB-12-3300 and uses a 16A power cord for the power supply. It uses two 14038 12V 7.2A fans, which reduces the power consumption and noise level. Also, it is an improvement from the M20S model, which uses 9A fans. The rear fan uses a 4-core 4P interface, and the front fan uses a 6-core flat interface. Internally, this machine comes with three built-in hash boards, and each has 148 Samsung 8nm ASIC chips, a total of 444.

The power ratio is about 37.53W/T. The above data shows that the MicroBT Whatsminer M30S was built for reliability and profitability. The MicroBT company is known for its 'Plug and Play' designs, and the Whatsminer M30S isn't left out. It was built with first-time users in mind.

Images
